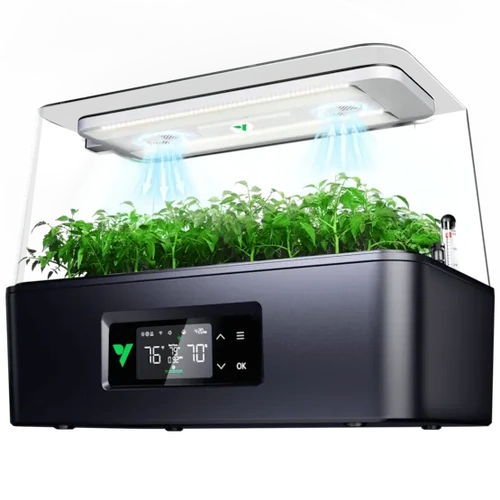

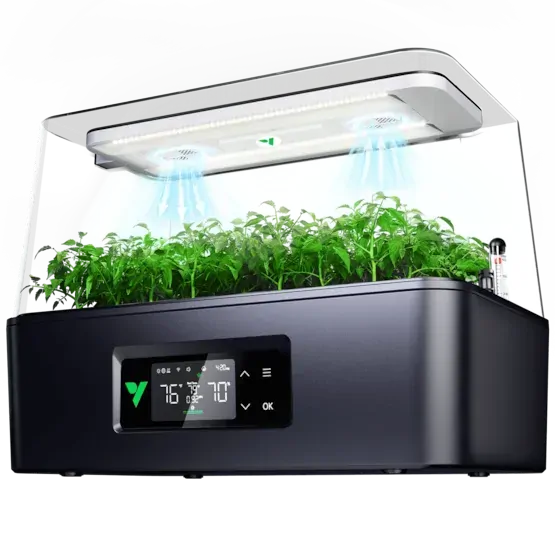

The VIVOSUN VSEED S40 Smart Seedling Box is an automated propagation system designed to regulate the environmental variables of seed starting. Instead of relying on passive domes, it actively manages a controlled microclimate to support early plant development.

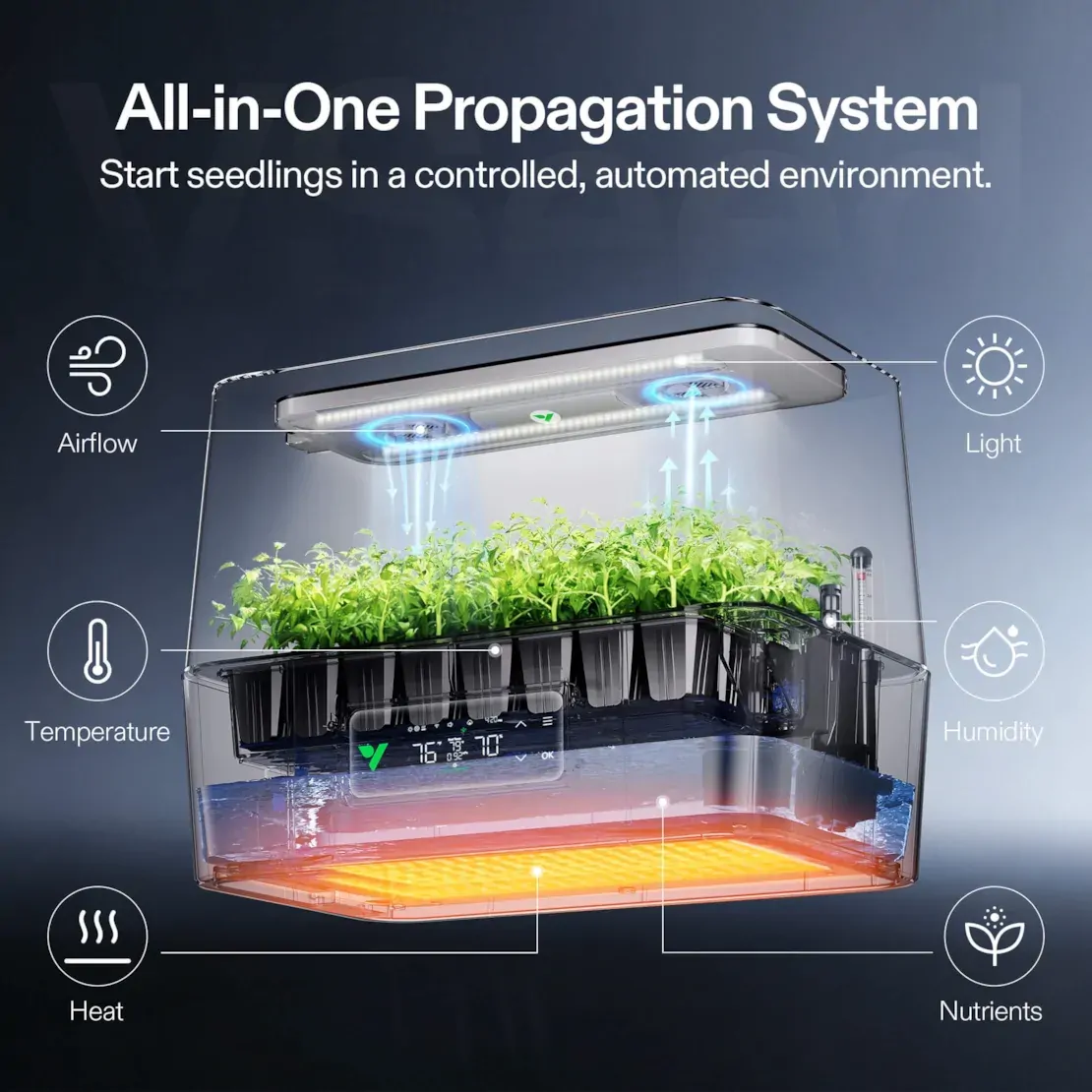

Here is a breakdown of how its primary systems work:

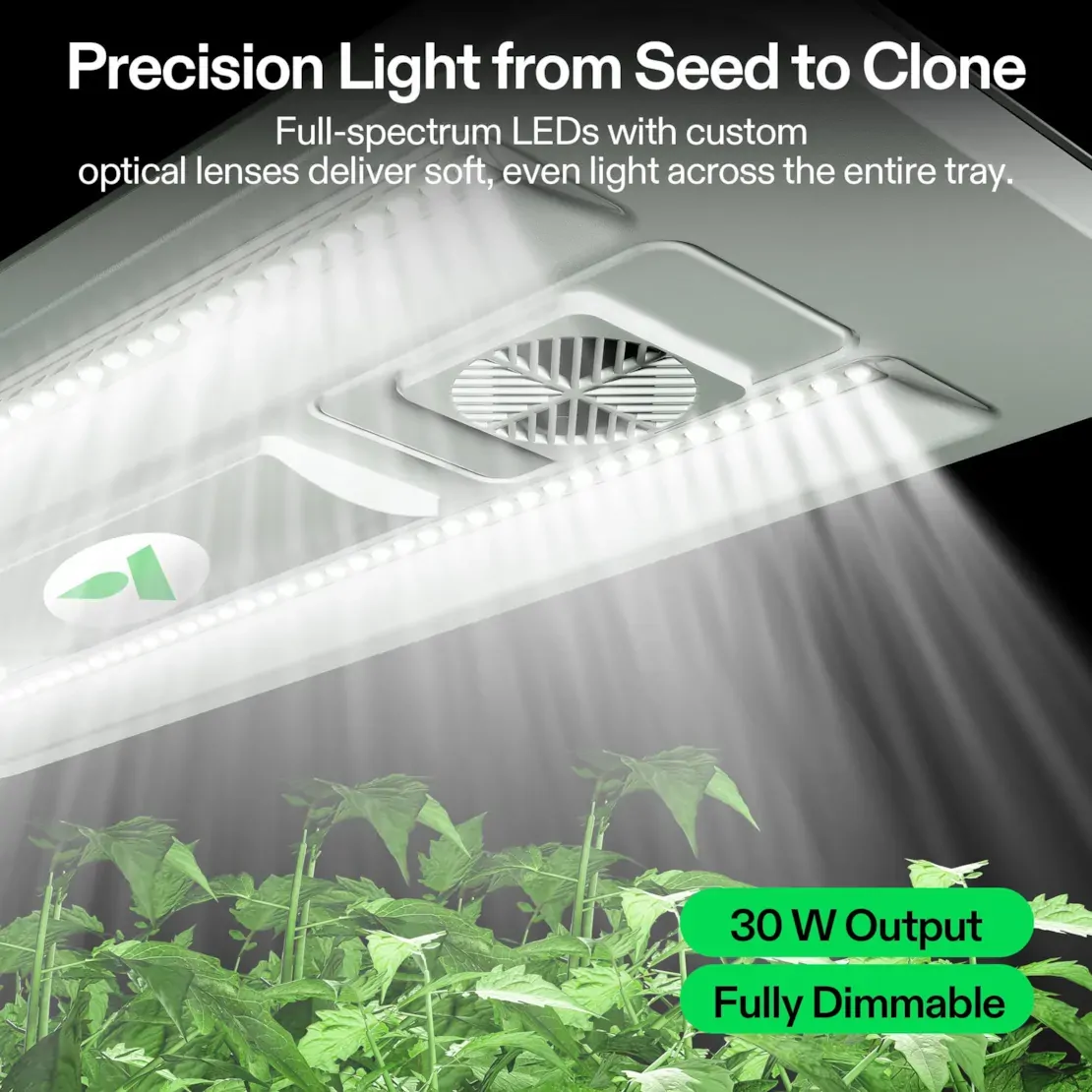

• Lighting: The unit includes a 30W full-spectrum LED grow light. It uses specialized optical lenses to ensure light is distributed evenly across the entire 40-cell tray, which helps prevent seedlings on the edges from stretching to reach the light.

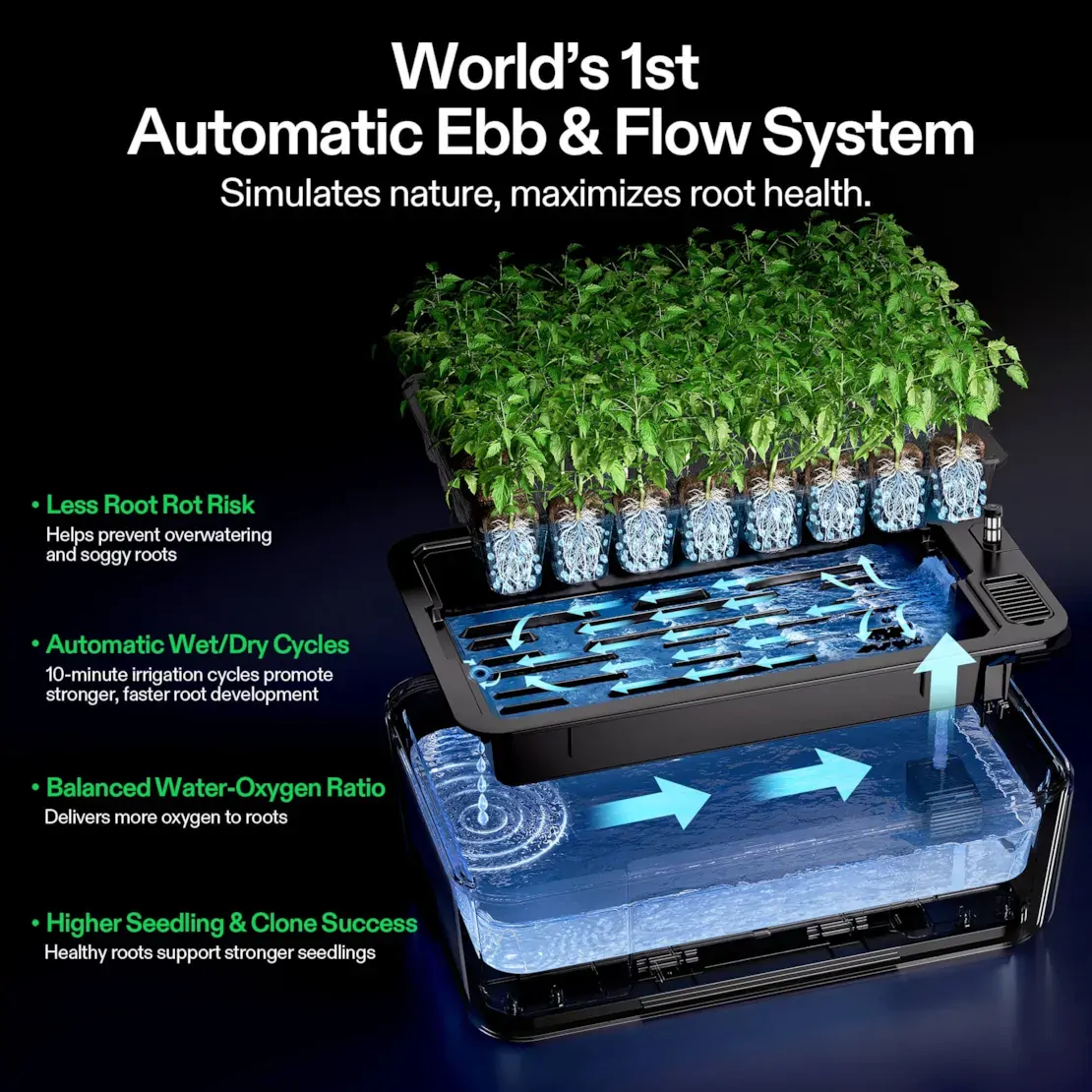

• Irrigation: It utilizes an automated ebb-and-flow watering system connected to a 4.5-liter tank. This setup periodically floods the root zone to deliver water and then drains the excess away, ensuring the roots remain oxygenated and reducing the likelihood of rot.

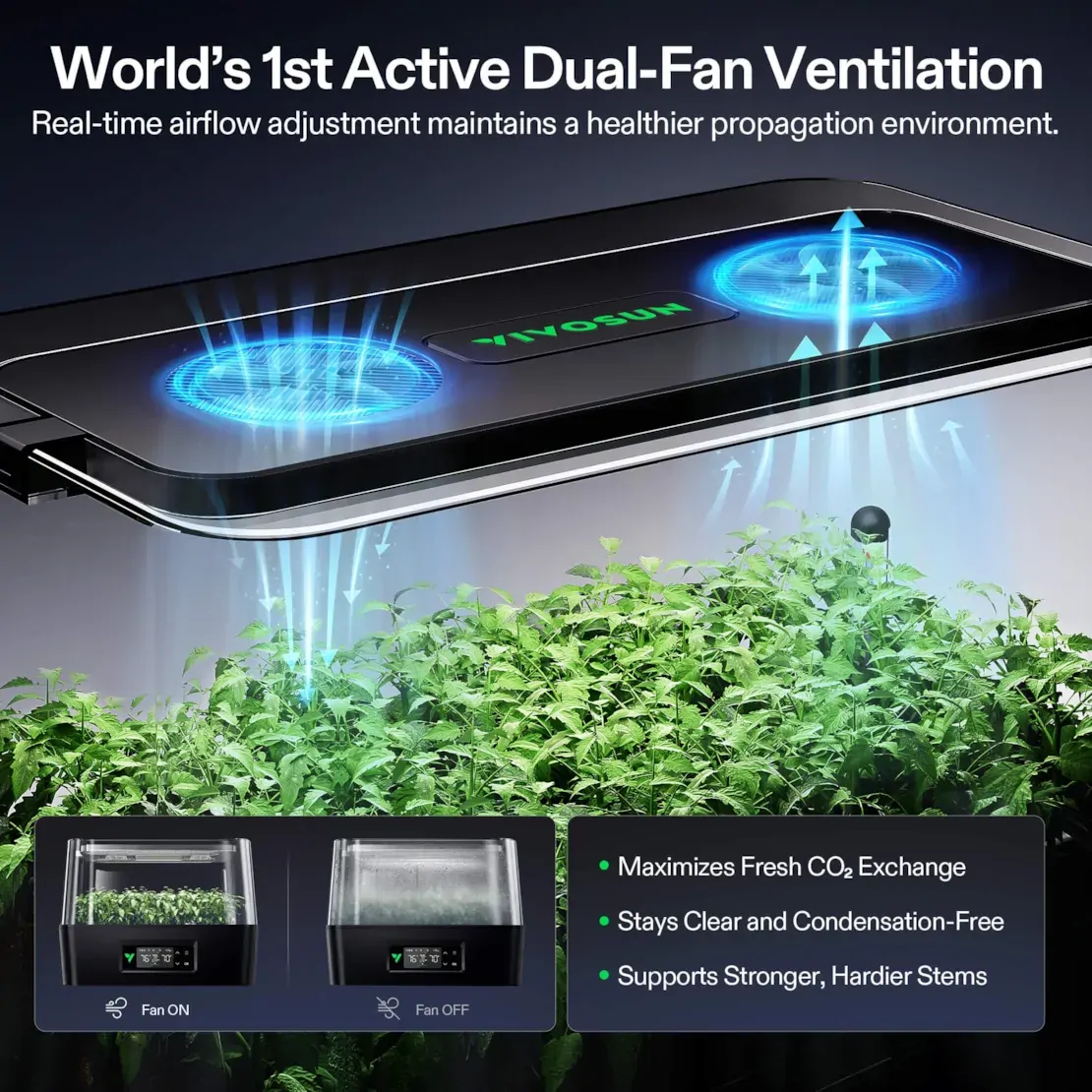

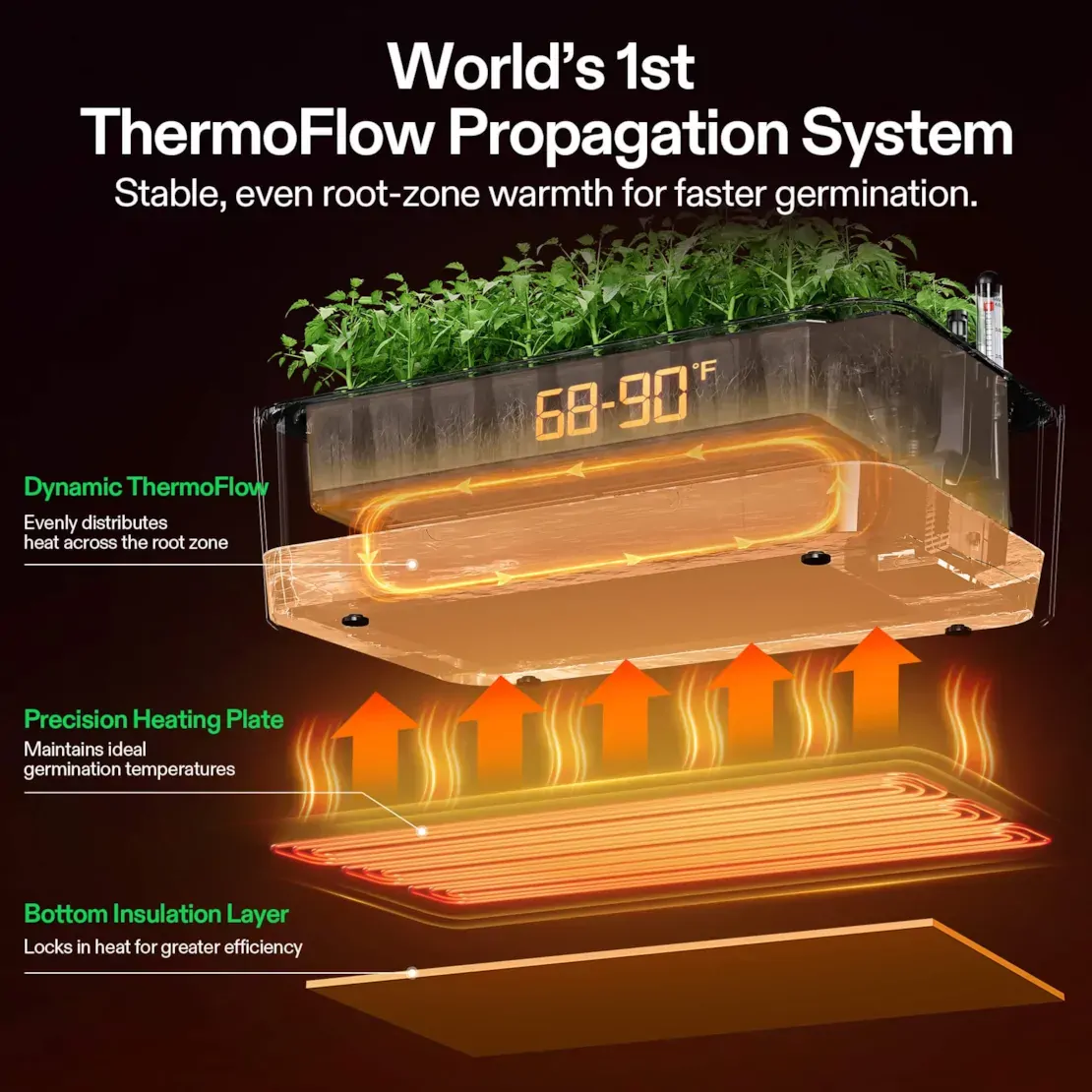

• Temperature and Airflow: Root-zone temperatures are maintained by a 40W heating element, which is regulated by four internal sensors to prevent overheating. Above the soil, a dual-fan ventilation system—featuring dedicated intake and exhaust fans—actively balances the internal humidity and fresh air exchange.

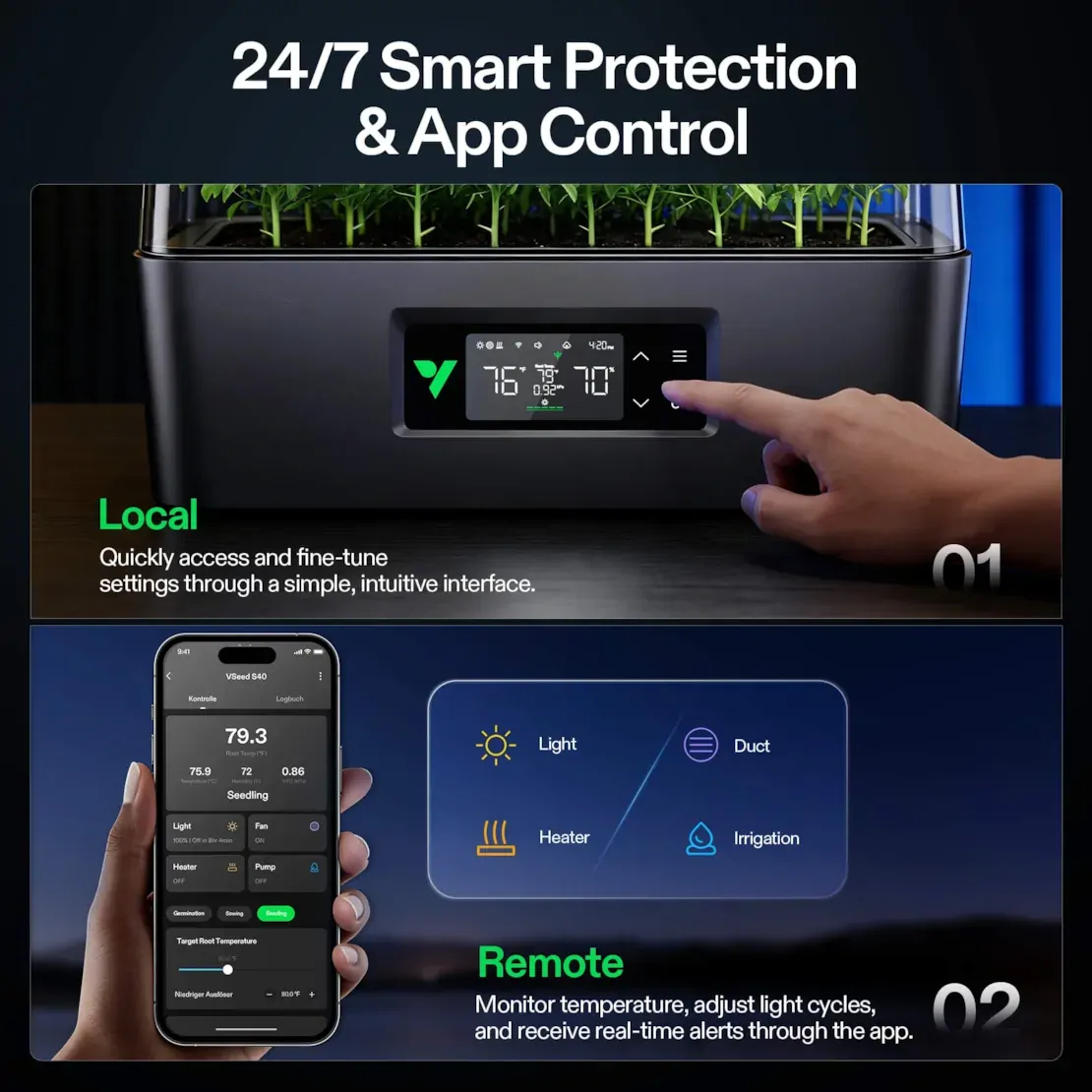

• Controls and Monitoring: The system can be managed using the onboard LCD display or remotely via the Vivosun App (over a 2.4G Wi-Fi connection). The app allows you to monitor real-time temperature and humidity, adjust lighting schedules, and receive environmental alerts.

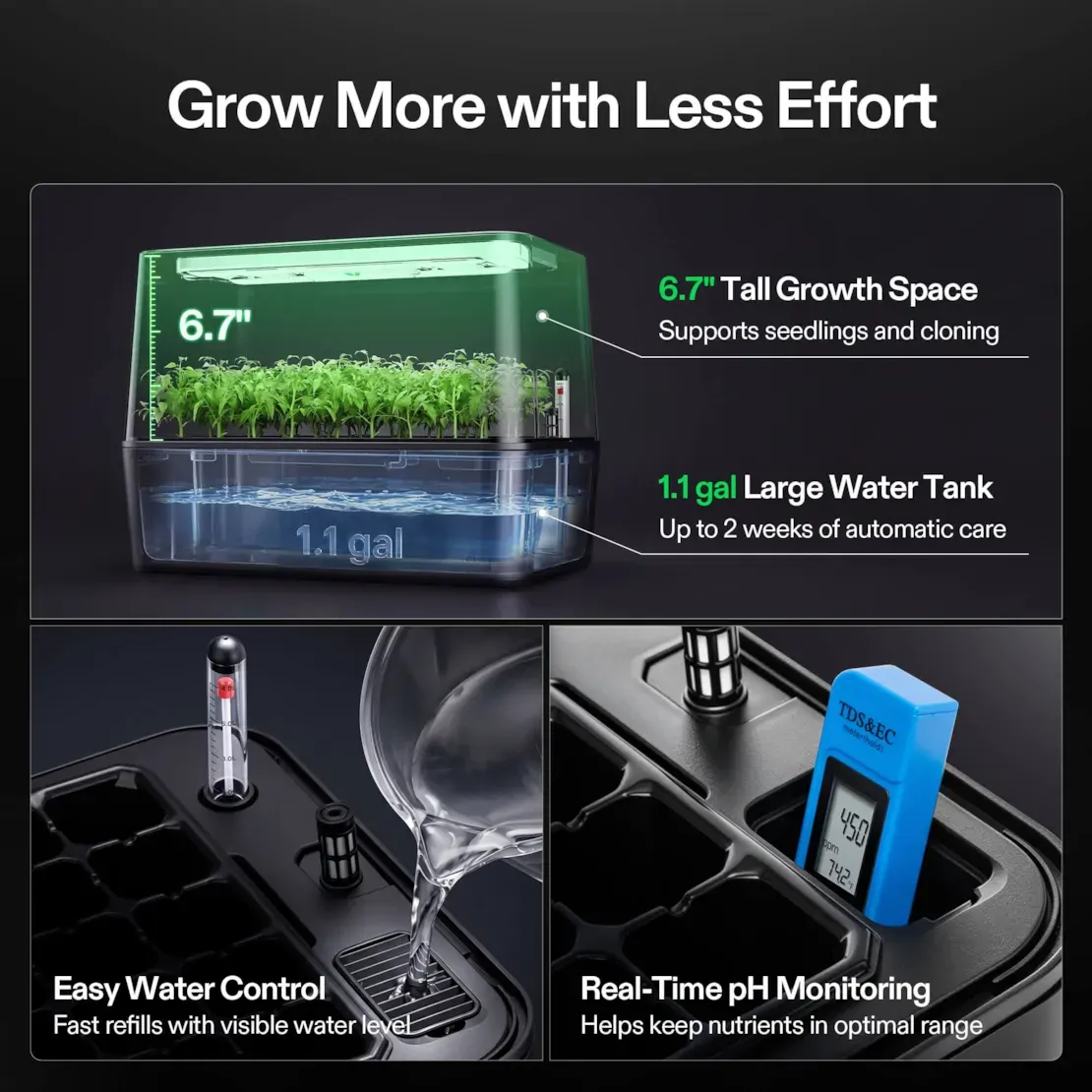

Physically, the setup measures 43.9 x 27.4 x 34.5 cm and is built to accommodate a standard 40-cell seed starter tray, providing up to 17 cm of vertical growing space before seedlings need to be transplanted.
